Radiomaster Zorro Radio Controller (Mode2)
Radiomaster Zorro Radio Controller (Mode2)
Couldn't load pickup availability
RadioMaster Zorro Radio - The Compact Class-Leader.
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Specification
|
Versions |
CC2500 |
4in1 |
ELRS |
ELRS Starter Set |
CC2500 + TBS Nano Crossfire Combo |
|
|
Physical Dimensions |
170*159*108mm |
|||||
|
Weight |
350 grams |
|||||
|
Operating Frequency |
2.400GHz-2.480GHz |
|||||
|
Internal RF Options |
CC2500 multi-protocol |
4-in-1 multi-protocol |
ELRS |
CC2500 multi-protocol |
||
|
Supported Protocols |
Module dependent |
Module dependent |
ELRS |
Module dependent |
||
|
RF Power |
CC2500: Default 100mW |
4-in-1: Default 100mW |
Default 100mW |
CC2500: Default 100mW |
||
|
Antenna Gain |
Folding 2db |
|||||
|
Operational Current |
160mA@8.4V |
|||||
|
Operational Voltage |
6.6-8.4v DC |
|||||
|
Control Distance |
> 2km |
> 2km |
Receiver and Power Output dependant |
> 2km |
||
|
Operating system |
OpenTX / EdgeTX Compatible |
|||||
|
Control channels |
Maximum 16 (Rx dependent) |
|||||
|
Display |
128*64 Monochrome LCD |
|||||
|
Battery |
2 x 18350 (Not included) |
|||||
|
Charging |
Built in USB-C Charging |
|||||
|
Gimbal |
Hall-effect |
|||||
|
Module Bay |
Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) |
|||||
|
Firmware Upgrade Method |
Via USB or SD card |
|||||
Support OPENTX & EDGETX
Support 4 RF Configurations
Switchable in Mode 1 and Mode 2
Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.
Adjustable Hall Gimbals
External Module Bay
Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

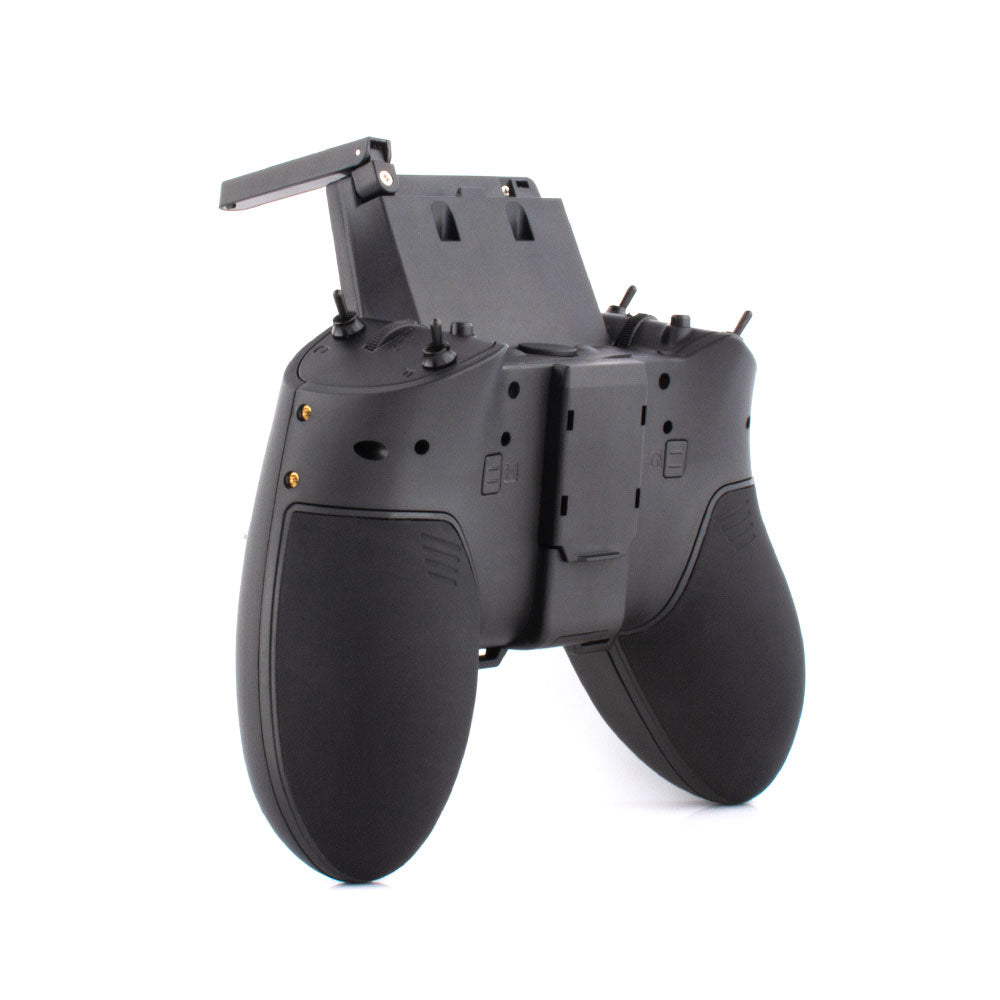

18350 Battery Compartments
Battery Charging
- Supports USB-C Directing Charging
- Supports External 2S Battery Power Supply
Oversized LCD & Foldable Antenna
DIY Attachment Points
Ergonomically Designed
Package Includes
Please note, when you choose a different version, it is packaged with different parts.
The chart below doesn't mean you will receive all versions.
| Version | Package Includes |
| CC2500 |
|
| 4-in-1 |
|
| ELRS |
|
| ELRS Starter Set |
|
| CC2500 + TBS Nano Crossfire Combo |
|
