Rradiomaster AG01 CNC Hall Gimbals for TX16S & Boxer

Name: Rradiomaster AG01 CNC Hall Gimbals for TX16S & Boxer
Brand: HobbyGOAT
SKU: Rradiomaster AG01 Combo
Price: 129.0 USD
Availability: InStock

$129.00 USD

~~$179.00 USD~~ $129.00 USD

Sale Sold out

Product variants

Quantity

Key Features

Made with CNC processed aviation grade aluminum
Ergonomic stick ends
Non-contact hall sensors, for accurate control inputs and precise centering.
Quad precision bearings, for unparalleled stick feel.

Specification

Item: AG01 CNC Hall Gimbal Sets
Sensing type: Hall
Working voltage: DC 3.3V
Linearity: Real-time (No delay)
Adjustable travel range: 38°—54°
Adjustable mode: Yes
Adjustable tension: Yes
Quad bearing: Yes
Temperature range: -20°c-85°c
Size: 60*53*56mm
Weight: 125g/pc

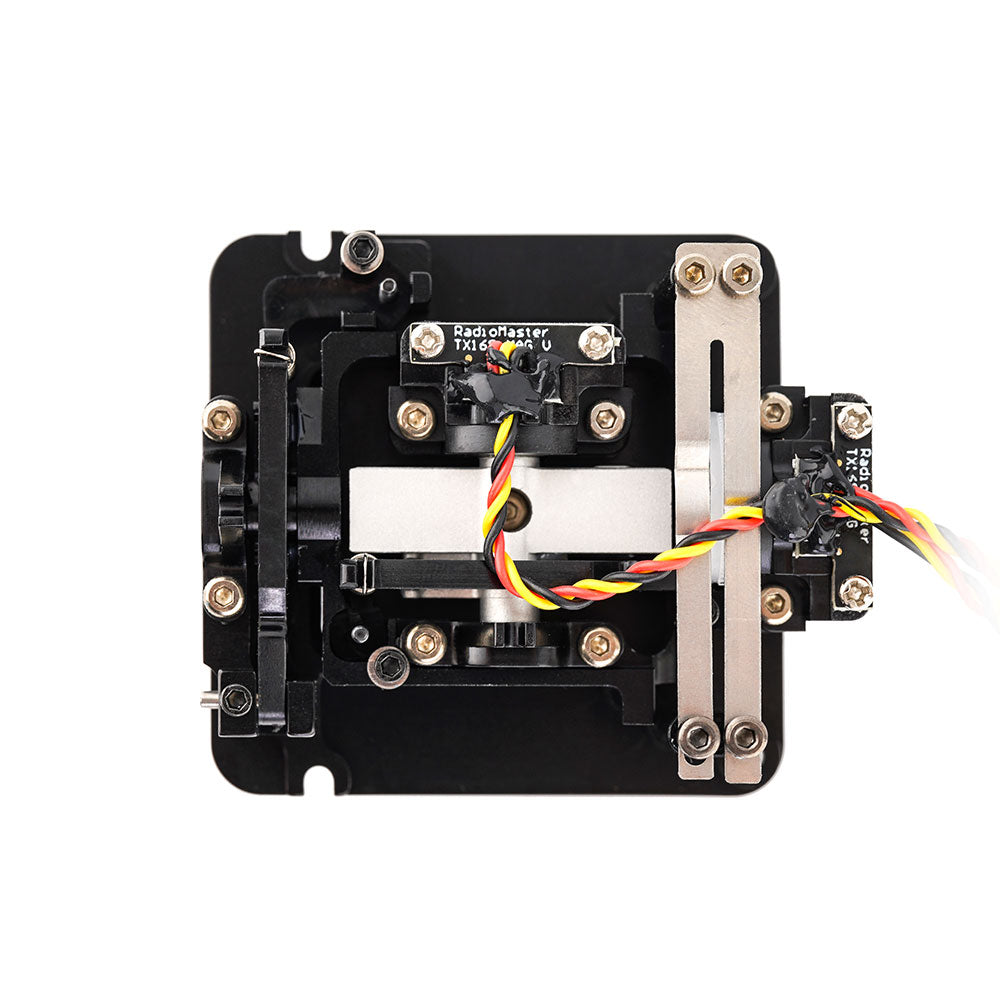

EXTERIOR ADJUSTABLE

① Set the lower travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counterclockwise to increase the travel. Travel range (38-54°)
② Set the upper travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counterclockwise to increase the travel. Travel range (38-54°)
③ Up and down spring tension: Turn the screw
clockwise to increase the up and down spring tension.
Turn the screw counterclockwise to reduce the up and down spring tension.
④ Centering and Mode adjustment: When the screw is turned clockwise to its lowest point, this gimbal will not center in its up and down axis when the stick is released. When the screw is turned counter-clockwise to its highest point, this gimbal will center its up and down axis when the stick is released.
⑤ Left and right spring tension: Turn the screw clockwise to increase the left and spring tension. Turn the screw counterclockwise to reduce the left and right spring tension.
Throttle tension adjustment: When there is no tension up and down, the ⑥screw adjusts the tension tightness, and the ⑦screw adjusts the scale tightness.
