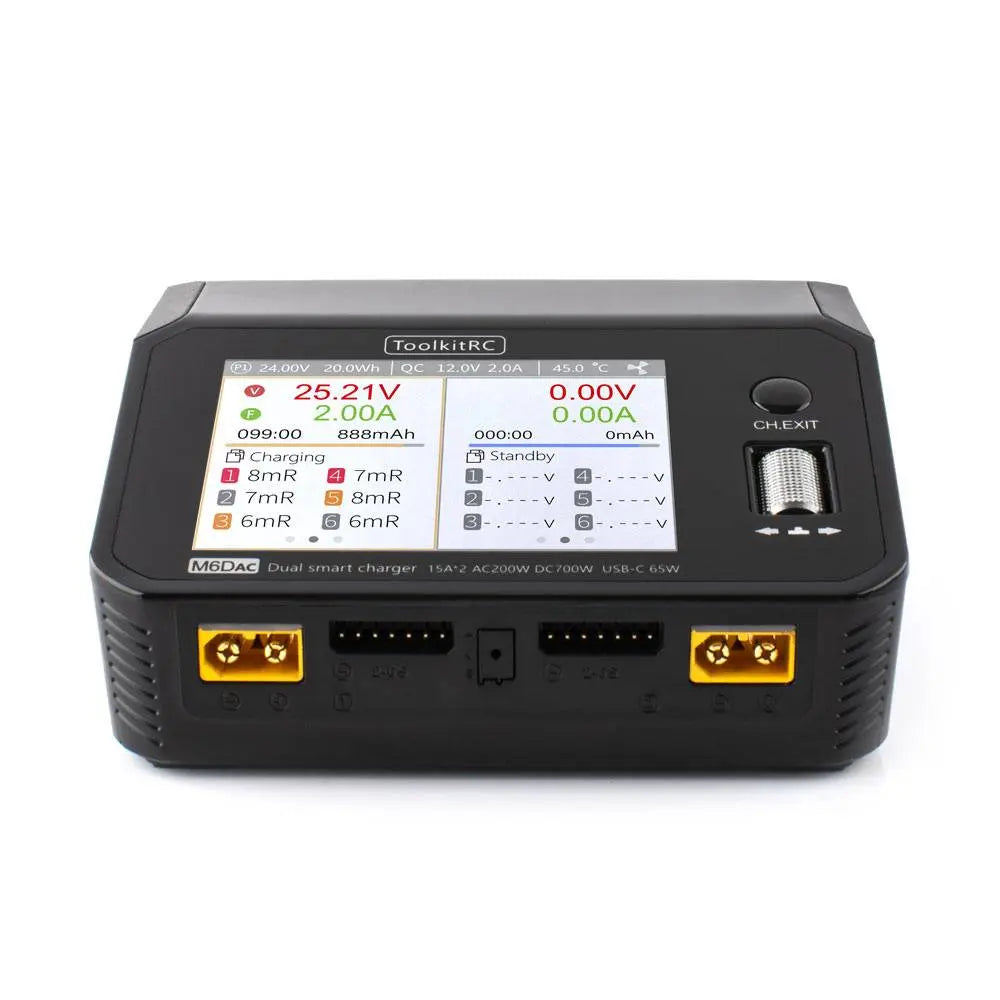

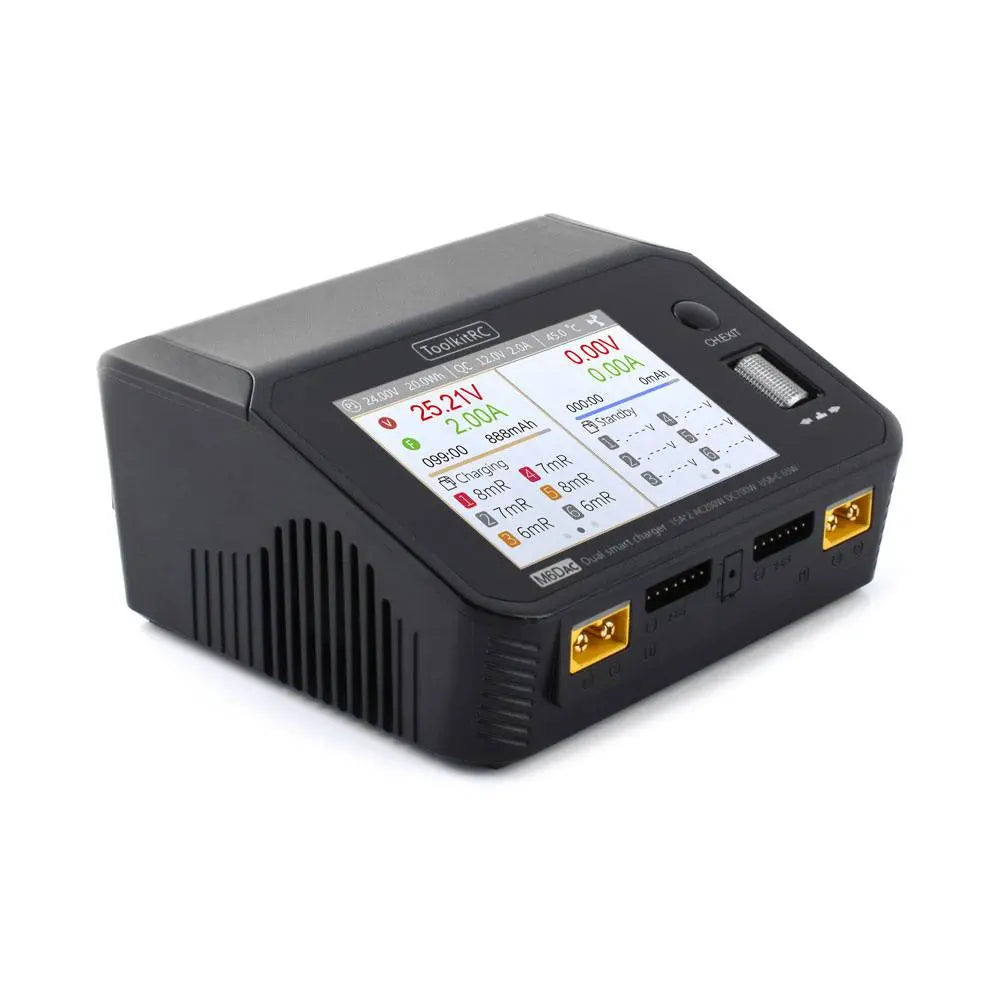

ToolkitRC M6DAC 200w AC/DC Smart Charger

The ToolkitRC M6DAC 200w AC/DC Smart Charger is a desktop power supply with a 3.5" IPS wide-angle display and 65w fast charge output. This power supply has an AC/DC dual-mode input which is ideal for your charging needs. The metal dial wheel allows for better control and can withstand well over 100,000 clicks!

Features

• 3.5" IPS Panel with 48x320 Resolution Display
• Multi Dial Wheel with Tactile Feel
• Higher DC-Input Voltage (7-28V)
• 65W TypeC Fast Charge Output
• Dual-Channel Charge Function
• Built-In 200w AC Power Supply
• IPS Full Viewing Angle Display
• No External Adapter Needed
• Multilingual User Interface
• AC/DC Dual Mode Input
• IPS Wide-angle viewing

Specifications

• USBC protocol: PD,QC,AFC,FCP,SCP,PE,SFCP,VOC
• USBC power: MAX 65W 3.25A @20.0V or Upgraded
• Charger power:
  • 0.1-15A @350W *2 (Asynchronous mode)
  • 0.1-25A @700W (Synchronous mode)
• Discharge power:
  • 350W @MAX 15A *2（Recycle mode)
  • 15W@3A *2 (Normal mode)
• LCD: IPS 3.5 inch LCD 480x320 Pixel
• Internal resistance: 1-100mR@1-6S
• Input voltage:
  • DC 7.0-28.0V @MAX 30A
  • AC 100-240V @ MAX 2.5A
• Type of battery:
  • Lipo LiHV LiFe Lion@1-6S
  • NiMh @1-16S Pb @1-10S
• Battery voltage: 1.0V-5.0V@1-6S
• Balance current: 1000mA @2-6S
• Product size: 127x106x57 mm
• Pack size: 158x134x63 mm
• Balance accuracy: <0.005V
• Product weight: 520g
• Pack weight: 700g

Includes

• 1x ToolkitRC M6DAC 200w AC/DC Smart Charger
