Walksnail

Walksnail Avatar HD Mini 1S Lite Kit

Walksnail Avatar HD Mini 1S Lite Kit

Regular price $99.99 USD
Regular price $159.00 USD Sale price $99.99 USD
Sale Sold out

Specification


Camera
Model    Avatar lite camera
Image Sensor  1/2.7"1nch
Resolution   1080P/60fps,720P/120fps,720P/60fps
Ratio       16/9  4/3
Lens  2.1mm
FOV     170°
Aperture     F2.0
Shutter Rolling  Rolling shutter
Min.Illumination   0.001Lux
Weight  1.8g
Dimensions  14*14*16mm

VTX
Model Avatar mini 1s module
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
I/O Interface JST1.0*6(Power in)JST0.8*4(USB)
Mounting Holes 25.5*25.5mm
Dimensions 30*30*6.5mm
Storage 8G
Recording 1080p/720p
Weight 5.1g
Operating Temperature -20-40℃
Channels 8
Wide Power Input 3.1V-5V
Supported FC System Betaflight
OSD Canvas mode
Bitrate 25mbps 50mbps
Latency Average delay 22ms
Antenna IPEX

1s lite antenna
Polarization  Linear
Frequency range 5600-5900MHz
Gain 1.6 dbi
VSWR ≤1.5
Input Impedance 50Ω
Interface IPEX-1
Size R 5mm,L 70mm
Weight 0.5g

Packing List
Avatar Mini 1S lite KIT  X1
4 Pin USB Cable X1
4 Pin Power Cable X1
1.4×8mm Screws  X4
1.4×10mm Screws   X2
M2 Anti-vibration Rubber Dampers *6mm X4






Product features:
1080P/60fps,22ms low latency,7.8g light weight,Canvas mode,Built-in 8g storage,HDMI out,31.-5V,350mw,Small antenna





New version of VTX
Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size, 5.1g, which can be installed in smaller drones.





Brand new camera
Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.





High quality, low latency
Weighing only 7.8g, but avatar mini 1s lite kit supports 1080P/60fps, 720P/100fps high definition FPV image quality with a average 22ms ultral-low latency, bring you a beautiful clear 1080P digital FPV video and an unforgettable flying experience.



8G Built-in Storage
The Avatar vtx comes with 8g built-in storage, it can record 1080p or 720p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.

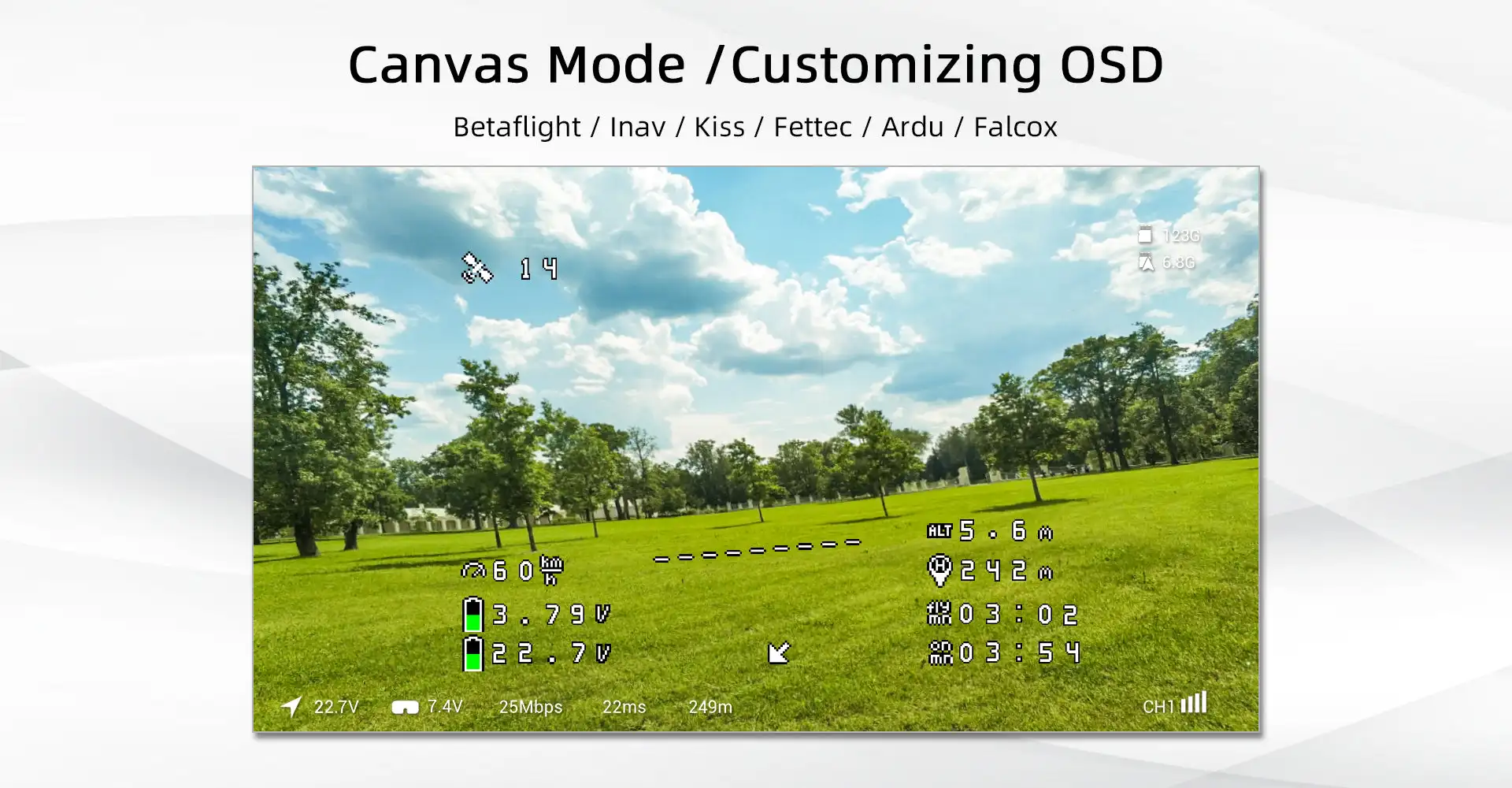

Canvas Mode
Supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.





3.1-5V input, max 350ms output

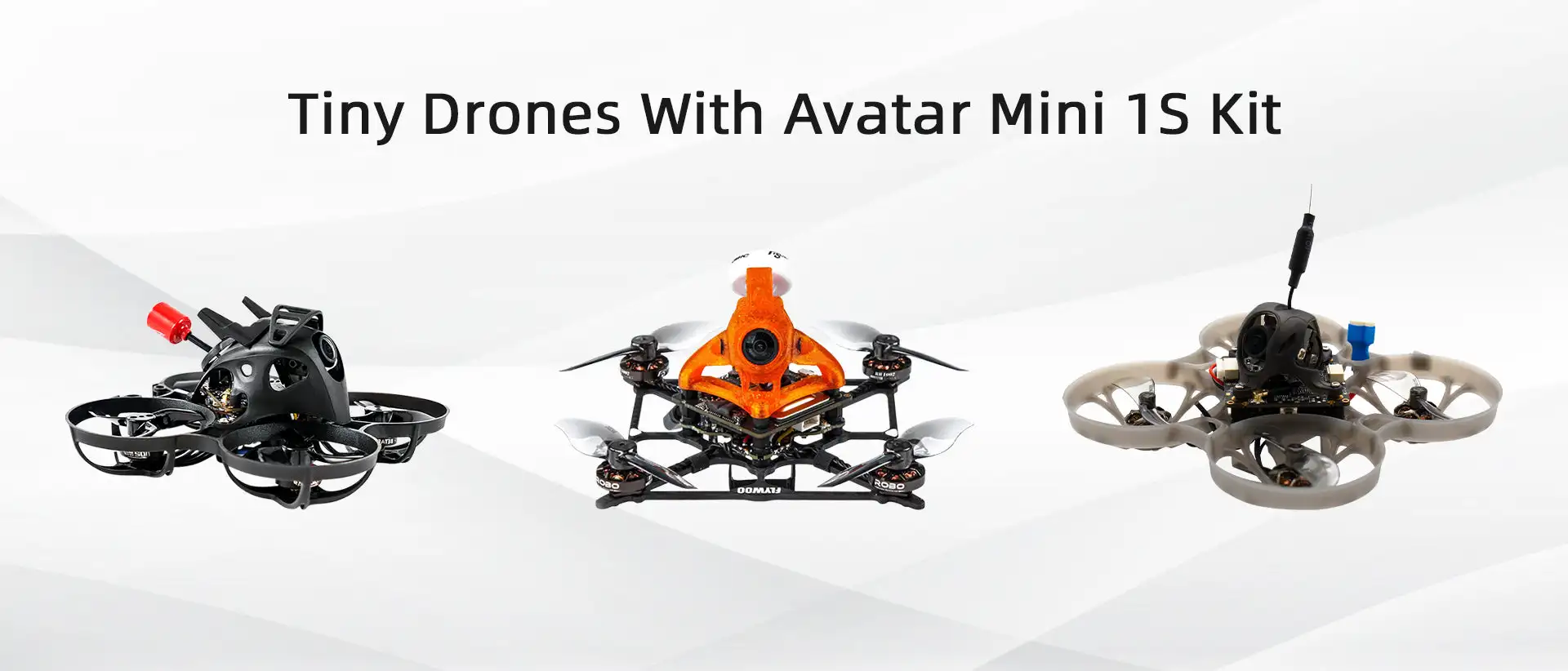

The avatar mini 1S lite kit is special designed for 65mm/75mm tiny drones, with 3.1-5V voltage input and 350mw power output, you'll be able to fly all kinds of tinywhoops in a amazing video quality and range.
